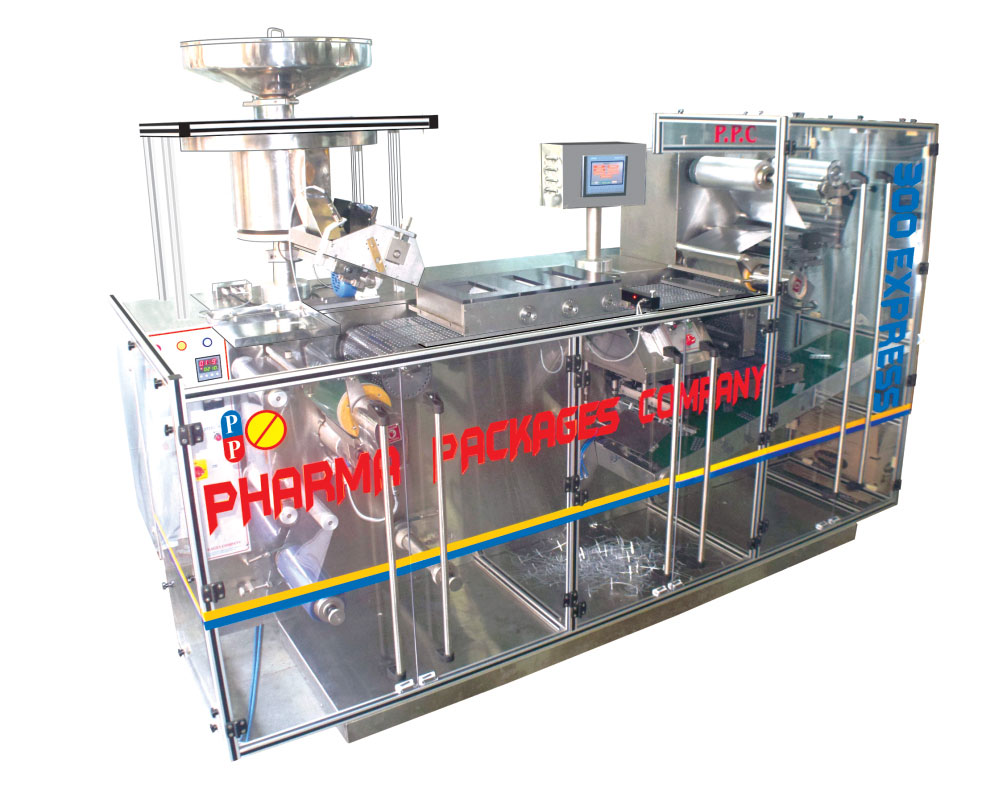

FEATURES :

• Max Output 300 to 400 Blister per min.
• High Speed PLC based System.
• Each station of machine is driven independently.
• Automatic Feeding System.
• Universal Printing Unit.
• Printing Registration Control (PRC)
• Compact Size of Machine for High Speed Production.
• Separate Punching Tool & Perporation Station.
• Stainless Steel cladding conforming to GMP Standard with Safety Polycarbonate Acrylic Guard.

TECHNICAL DETAILS :

• Maximum Forming Area – 110mm x 310mm
• Minimum Pack Size – 26 x 58
• Maximum Pack Advance – 118mm
• Optimum Forming Depth – 15 mm
• Maximum PVC Foil Width – 318mm
• Maximum Alu Foil Width – 314 mm

UTILITIES :

• Connected Load – 8 KW
• Average Power Consumption – 5 KW
• Approx 3 Phase Power Supply – 4 Wire + Protective (415V +10 %)
• Cooling Water Consumption – 40 – 60 Ltr./hr.
• Compressed Air – 8 Kg

MACHINE DIMENSION (in mm) :

• Machine Length - 3200mm
• Machine Width - 1100mm
• Machine Height - 1900mm

FLOOR DIMENSION (in mm)

• Machine Length - 4500 + 2%
• Machine Width - 3300 + 2%
• Machine Height - 2400 + 2%

WEIGHT (Net Weight – 1800 Kg.)
